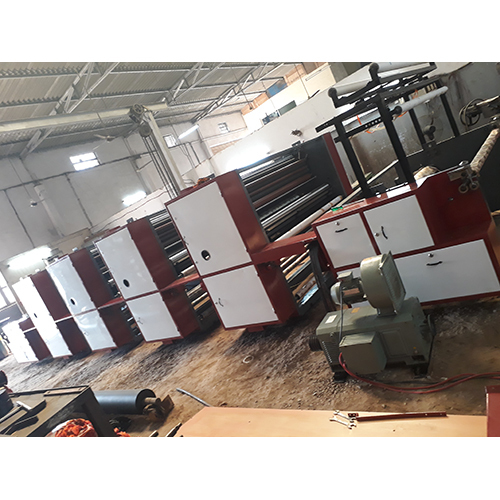

वेरिएबल रील टू रील 4 कलर फ्लेक्सो प्रिंटिंग मशीन

उत्पाद वर्णन

Specification of 4 color Flexo Printing machine.

Performance: The machine adopts rubber plate as of plate printing machine, suitable for printing roll material such packing materials as non-woven fabric, roll paper, paper packing bag, Kraft Paper and Duplex paper etc.

•   Easy operation, flexible starting, accurate color register.
• The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
•   Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
• The printing ink is spread by the Flexo cylinder with Waterbase ink color.
•   Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
• 360 continuous and adjustable longitudinal register device.
• The frequency control of motor speed adapts to different printing speeds.
• There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
• Magnetic powder or manually brake for unwinding tension control. Magnetic powder clutch for rewinding tension control.

Main Specification Of The Machine:

• ModelBPL-4 (1200mm AND AS PER CUSTOMIZED)
• Printing MachineNon woven fabric, roll paper, Kraft paper, Duplex Paper and so on.
• Max. Printing Width 1200mm and as per customized
• Max. Printing Length100-1000mm AND AS PER CUSTOMIZED
• Mechanical Speed 10-80m/m
• Printing Speed10-60m/m
• Image Plate Thickness (include adhesive tape2.8mm

Feeding Material Unit:

• Reel Length1200mm AND AS PER CUSTOMIZED
• Valid printing reel length200mm AND AS PER CUSTOMIZE
• Reel core diameter 76mm
• Max diameter of feeding Material1078mm
• Feeding mode: magnetic powder brake auto tension feeding, with photocell side correction

Pulling Unit:

• Pulling part: belt roller chroming roller
• Group: 4 groups

Printing Unit:

• Printing part: chroming roller, printing roller, rubber roller
• Printing roller circumference: 100-1000mm
• Printing plate material: PVC rubber
• Drive mode: gear drive
• Printing: 360 degree rotate
• Adjust mode: manual,
• Plate Lifting: manual

Heating & Dry Part:

• Heat drying system: blower with heating
• Heating area: 4 color 6 pieces
• Heating power: 1500mm Model: 5kw
• Assistant drying length: 1 meter
• Fan2 pieces
• Blowing powder: 1200mm: 2*1.1kw

Motor Unit:

• Main motor: 4color 1200mm: 3kw
• Running ink motor: 4 color 1200mm: 0.75kw
• Main motor adopt frequency control adjusting speed

Rewinding Part:

• Reel length: 1200mm
• Valid reel: 1200mm
• Reel core diameter: 76mm
• Max feeding diameter: 1000mm
•  Rewinding mode: magnetic powder auto tension control rewinding

Main Detailed Parts List:

• Main Motor:1pc 3Kw
•   Inking motor:1pc 0.75kw
•  Inverter:1 set (Japan
• Fan:2pcs 1.1Kw (APP
• Aluminum guide roller: (BST SYONA investment, surface oxidation, static and dynamic equalization treatment)
• Metal roller: each color one piece
•   Rubber roller: one color one piece
•   Brake powder: one set
• Low-voltage appliance (Omron)
• Switch: (France Schneider)
• Electric control case: Local
• Main Machine Body
• Machine cast:
• Bearings: Japan USK
• Pneumatic elements: (JENETICS
• Powder brake and Tension controller (Japan Mitsubishi AND INDIAN
