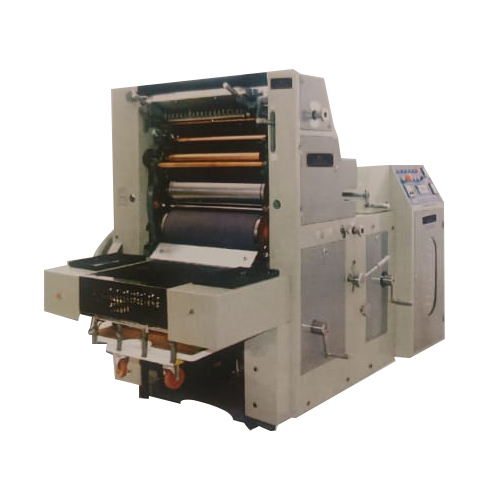

Single Colour Sheet Fed Offset Machine
1350000 INR/Unit
Product Details:
- Type Sheet Fed Offset Machine
- Computerized No
- Automatic Grade Automatic
- Weight (kg) 1700 Kilograms (kg)
- Warranty 1 Year
- Click to View more
X
Single Colour Sheet Fed Offset Machine Price And Quantity
- 1350000 INR/Unit
- 1 Unit
Single Colour Sheet Fed Offset Machine Product Specifications
- 1 Year
- No
- Sheet Fed Offset Machine
- 1700 Kilograms (kg)
- Automatic
Product Description
Features
- High Quality Printing with Drive gears Precision Ground
- Highly Uniform Ink-Film on Plate
- Perfect Registration for long life
- Rigid Construction fr Vibration
- Finger Tip Controls
- DC Drive
- Free Working.
- Fine Ink Feed & Controls for
Specification
|
Description |
BPL 15 x 20 |
BPL 18 x 25 |
BPL 18 x 28 |
BPL 20 x 30 |
BPL 22 x 32 |
|
Sheet Size Max |
15.5" x 20.5" |
18" x 25.5" |
18" x 28.5" |
20" x 30.5" |
22" x 32" |
|
Sheet Size Min |
9" x 10" |
9" x 10" |
9" x 10" |
10" x 11" |
11" x 13" |
|
Printing Area Max |
15x20 |
17.5" x 25" |
17.5" x 28" |
19.5" x 30" |
21" x 31" |
|
Gripper Margin on Paper |
9 mm |
9 mm |
9 mm |
9 mm |
9 mm |
|
Gripper Margin on Plate |
1.25" |
1.25" |
1.25" |
1.25" |
1.25" |
|
Plate Size |
18.5" x 20.5" |
20" x 26" |
20" x 29" |
22" x 31" |
24" x 32" |
|
Blanket Size |
20" x 20.5" |
22" x 26" |
22" x 29" |
24" x 31" |
26" x 32" |
|
Pile Height Feeder |
32" |
32" |
32" |
32" |
35" |
|
Pile Height Delivery |
15 |
16 |
16 |
15 |
15 |
|
Paper Thickness |
30-450 GSM |
30-450 GSM |
30-450 GSM |
30-450 GSM |
30-450 GSM |
|
Inking Rollers |
20 |
20 |
20 |
20 |
20 |
|
Dampening Rollers |
5 |
5 |
5 |
5 |
5 |
|
Ink Form Roller |
3 |
3 |
3 |
3 |
3 |
|
main Drive Motor |
2HP |
3HP |
3HP |
5HP |
5HP |
|
Compressor Pump Motor |
2HP |
2HP |
2HP |
3HP |
3HP |
|
Printing Speed |
8000 IPH |
8000 IPH |
8000 IPH |
7000 IPH |
70001PH |
|
Physical Dimension |
74"L x 43"W x 60"H |
77"L x 57"W x 60"H |
77"L x 60"W x 65"H |
85"L x 63"W x 70"H |
89"L x 65"W x 75"H |
|
Weight |
1700 Kgs |
2000 Kgs |
2200 Kgs |
2600 Kgs |
3200 Kgs |
